Description

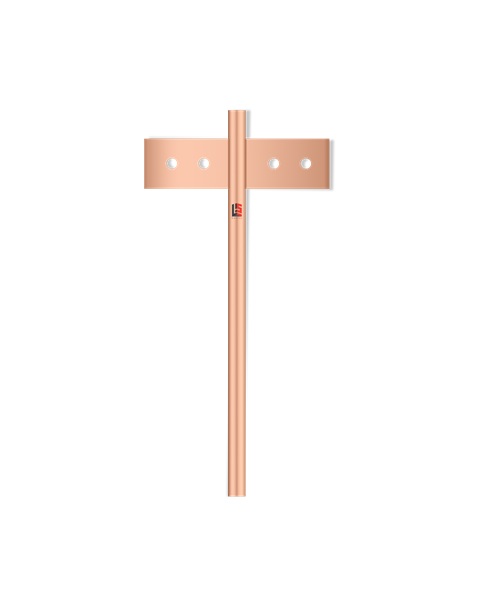

LEESAS one of the dealers of copper bonded earth rod with terminal. LEESAS copper bonded earth rod with terminal are of a high quality which complies by the most demanding regulations, for efficient and longlasting earthing. LEESAS also supply copper bonded earth rod with terminal.
Specification
- Copper bonded earth rods with terminal at the top are of a high quality which complies by the most demanding regulations, for efficient and long-lasting earthing
- Copper bonded rods are made by molecularly bonding pure electrolytic copper (99.9%) onto a low carbon, high tensile steel core
| Model / Part Number | Length (mm) | Rod Dia (mm) | Copper Bonding (microns) |
|---|---|---|---|
| LS 112CBRT | 1000 | 12.7 | 250 |
| LS 212CBRT | 2000 | 12.7 | 250 |
| LS 312CBRT | 3000 | 12.7 | 250 |
| LS 114CBRT | 1000 | 14.2 | 250 |
| LS 214CBRT | 2000 | 14.2 | 250 |
| LS 314CBRT | 3000 | 14.2 | 250 |
| LS 117CBRT | 1000 | 17.2 | 250 |
| LS 217CBRT | 2000 | 17.2 | 250 |
| LS 317CBRT | 3000 | 17.2 | 250 |
| LS 125CBRT | 1000 | 25 | 250 |
| LS 225CBRT | 2000 | 25 | 250 |
| LS 325CBRT | 3000 | 25 | 250 |
| LS 132CBRT | 1000 | 32 | 250 |
| LS 232CBRT | 2000 | 32 | 250 |
| LS 332CBRT | 3000 | 32 | 250 |
| LS 138CBRT | 1000 | 38 | 250 |
| LS 238CBRT | 2000 | 38 | 250 |
| LS 338CBRT | 3000 | 38 | 250 |
Note: Copper Bonding can be done ranging from 25 to 300 microns, upon customer requirements.
