Description
LEESAS one of the dealers in copper pipe electrode. copper pipe electrode offer cost effective and efficient earth rod Earthing system. These reliable earth rods are are corrosion resistant and eliminate electrolytic action. LEESAS also produce a quality copper pipe electrode.
Specification

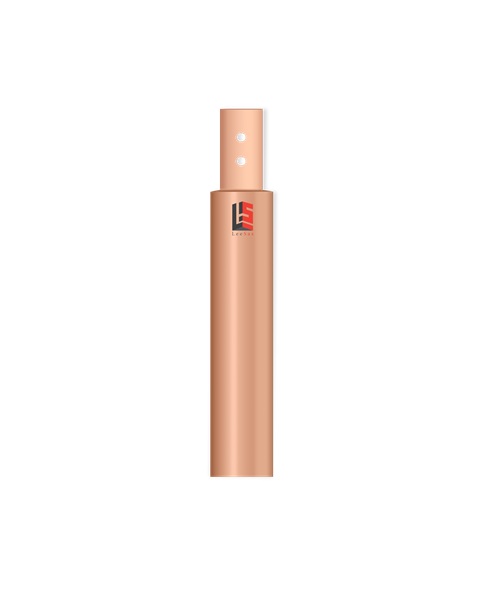

- LEESAS electrode consists of a primary earthing electrode (outer pipe) of 99.9% pure Copper pipe
- The hollow space of the electrode is duly filled with a highly conductive and non-corrosive compound which safeguards the electrode getting corrode over a long period of time under the soil
- Also, the compound ensures the easy distribution of leakage/fault current lands on the electrode. Both the ends of the electrode are permanently sealed and the top portion of the earth electrode is compressed to form an extended lead with 2 holes on the terminal for connecting to the load/equipment
| Model / Part Number | Length (mm) | Outer Dia (mm) | Terminal (mm) | Pipe |
|---|---|---|---|---|
| LS 250C | 2000 | 47-50 | Compressed | Copper |
| LS 350C | 3000 | 47-50 | Compressed | Copper |
| LS 263C | 2000 | 60-63 | Compressed | Copper |
| LS 363C | 3000 | 60-63 | Compressed | Copper |
Note: Copper Pipe with Terminal & Dual Pipe can be supplied upon customer requirements.
